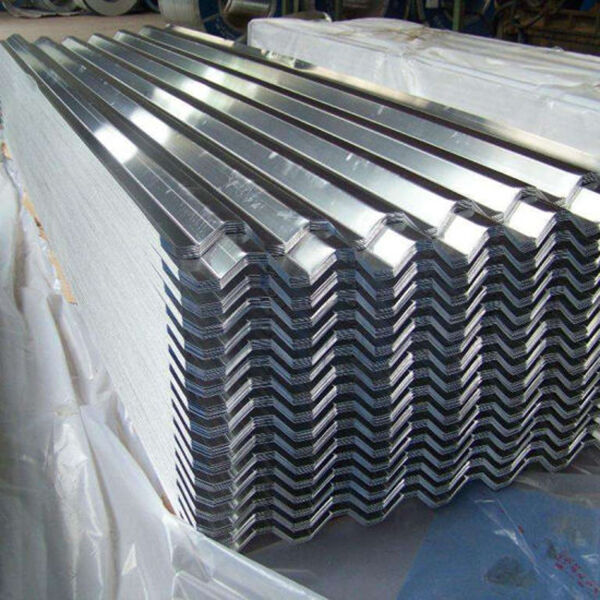

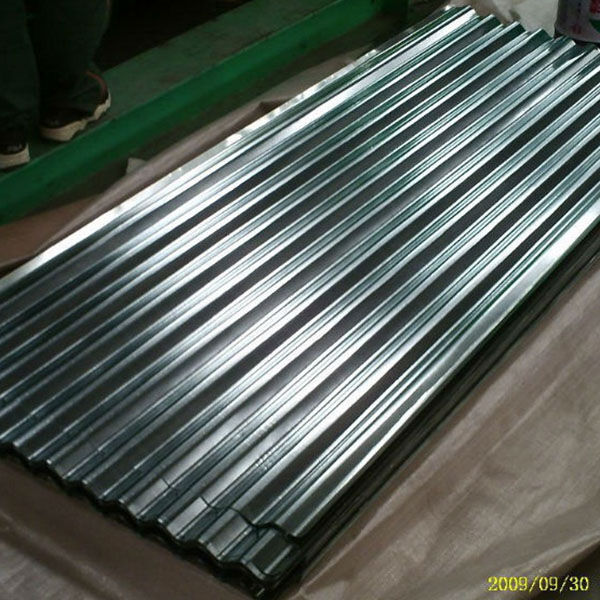

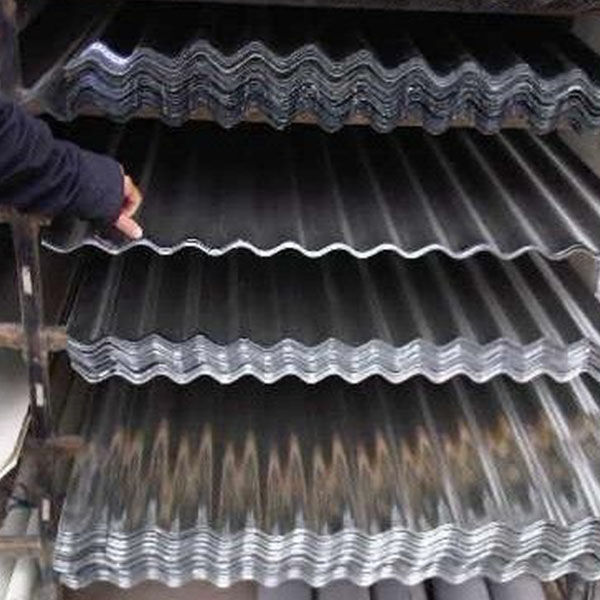

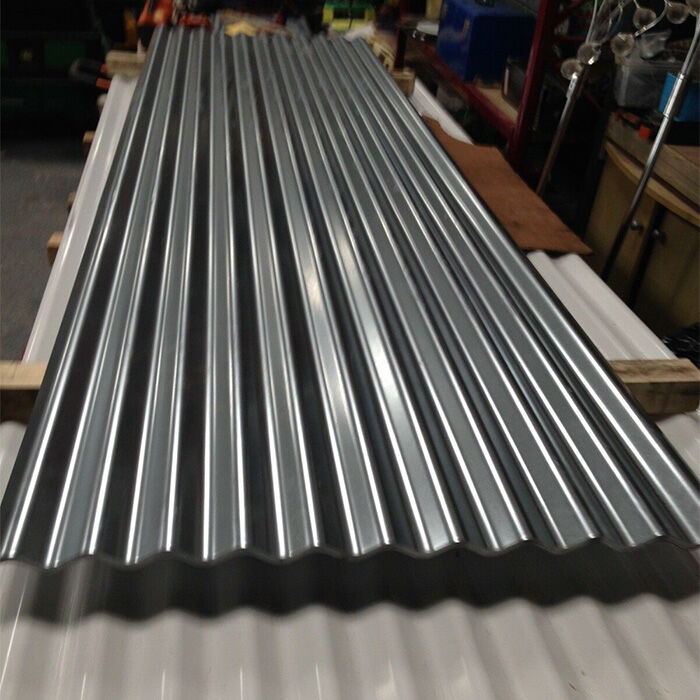

| Product Name | Galvanized steel roof sheet/GI roof sheet |
| Material | Dx51D, Dx52D, Dx53D, DX54D, S220GD, S250GD, S280GD, S350GD, S350GD, S550GD; SGCC, SGHC, SGCH, SGH340, SGH400, SGH440, SGH490,SGH540, SGCD1, SGCD2, SGCD3, SGC340, SGC340 , SGC490, SGC570; SQ CR22 (230), SQ CR22 (255), SQ CR40 (275), SQ CR50 (340), SQCR80(550), CQ, FS, DDS, EDDS, SQ CR33 (230), SQ CR37 (255), SQCR40 (275), SQ CR50 (340), SQ CR80 (550); or Customer's Requirement |
| Thickness | 0.12-6.00mm or customer's requirement |
| Width | 600mm-1500mm, according to customer's requirement |
| Zinc coated | 30g-275g/m2 |
| Type of Coating | Hot Dipped Galvanized Steel |
| Surface Treatment | Passivation(C), Oiling(O), Lacquer sealing(L), Phosphating(P), Untreated(U) |
| Surface Structure | Normal spangle coating(NS), minimized spangle coating(MS), spangle-free(FS) |
| Standard | JIS 3302 / ASTM A653 /EN10143 AISI , ASTM , DIN , GB , JIS G3302 G3312 G3321 , BS |
| Technique | Hot Rolled / Cold Rolled |
| Product Application | 1. Fence, greenhouse, door pipe,greenhouse2. Low pressure liquid, water, gas, oil, line pipe3. For both indoor and outdoor the building construction4. Widely used in scaffolding construction which is much cheaper and convenient |
| Origin | Jiangsu China |
| Certificates | API ISO9001-2008,SGS.BV |
| Delivery Time | Usually within 10-45 days after receipt of advance payment |
| Material | CGCC,SGCH,G350,G450,G550,DX51D,DX52D,DX53D |
| Thickness | 0.12-1.5mm |
| Width | 600-1250mm |
| Zinc coating | Z40-275g/m2 |
| Painting Coating | Top: 15 to 25 um (5 um + 12-20 um) back: 7 +/- 2 um |
| Painting | Nippon, KCC,AkzoNobel, etc |
| Coating type | PE, SMP, HDP, PVDF |
| Resin con-structure | Double painting and double baking process |
| Back side coating color | Light grey, white and so on |
| Annual Output Quantity | 350,000MT |
| MOQ | 25 tons or one container |
| Payment | T/T, LC, Western Union |
| Hardness | Soft hard(60),medium hard(HRB60-85),full hard(HRB85-95) |
