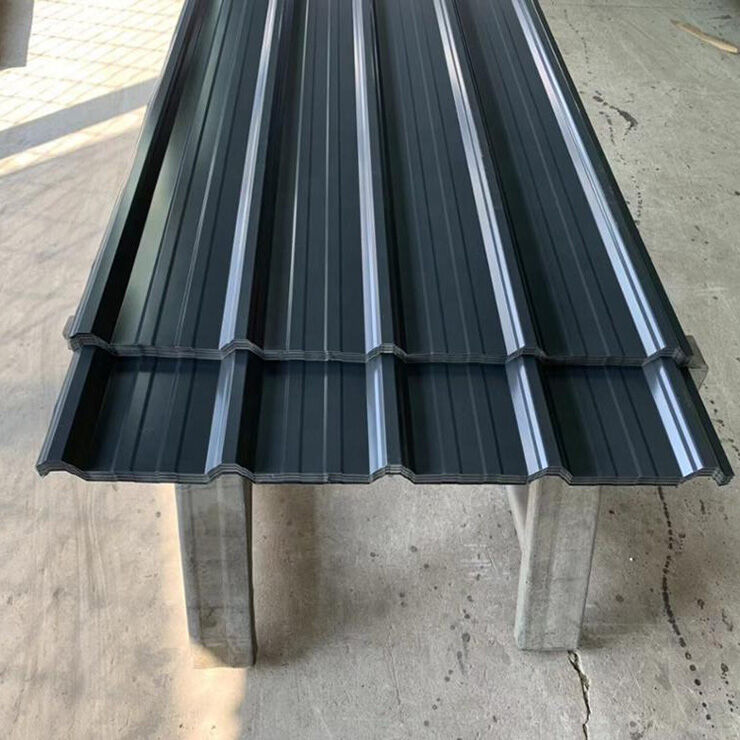

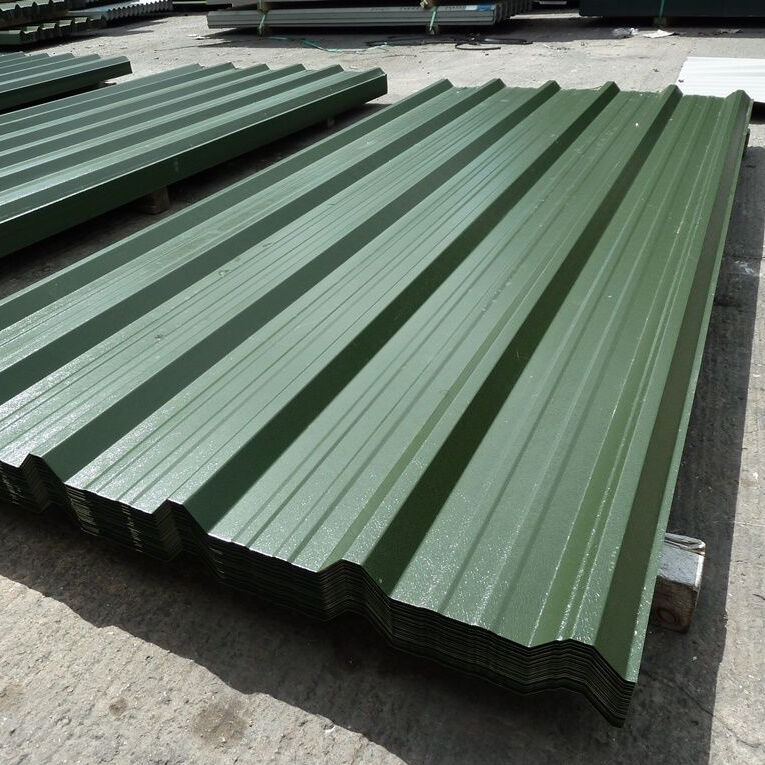

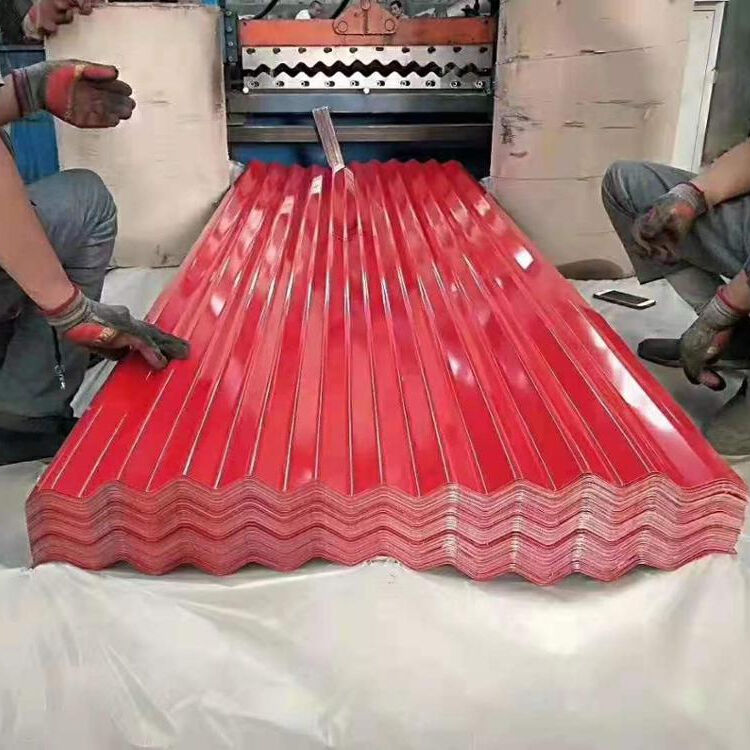

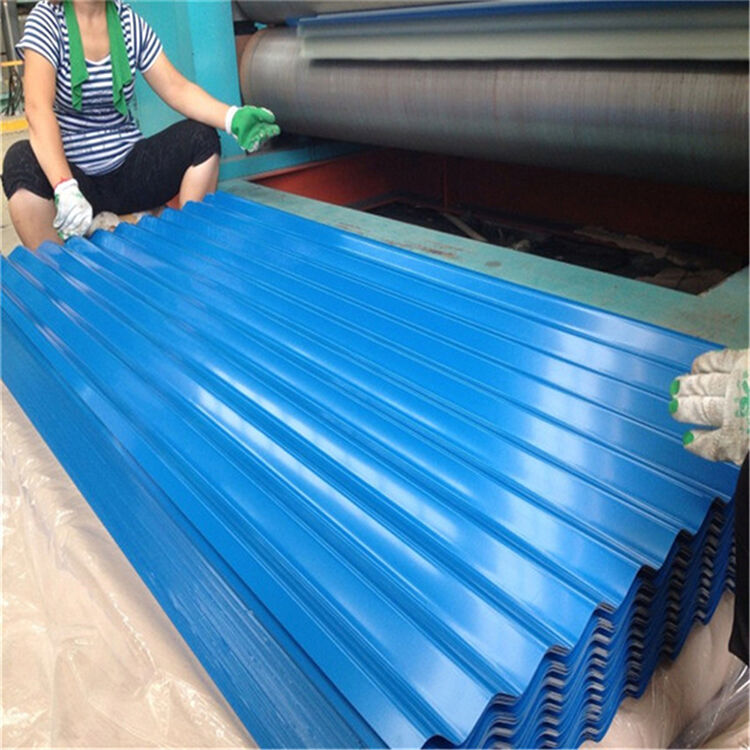

Colorful Galvanized Steel Roof Sheet

Place of Origin:Wuxi, China
Material: Carbon steel、Stainless steel、Galvanized
Payment Term：T/T, L/C, Western Union, etc
Design Style:customizable
Delivery Time:7 Days
Transportation：By sea or Land transportation

Mail : sales@zlyssteel.com

Phone/Whatsapp/Wechat : +86 13338751568

Product Description

Product Name	ppgi ppgl color roofing sheet
Width	660~1150mm
Thickness	0.12mm-0.8mm
Length	1000-11800mm or as your requst
Advantages	1.low foundation cost2.easy construction3.time and labor saving
Color	Standard RAL color:red,bule,white,grey,brick,etc.
Surface Treatment	1. Galvanized2. PVC,Black and color painting3. Transparent oil,anti-rust oil4. According to clients requirement
Applications	1. Fence, greenhouse, door pipe,greenhouse2. Low pressure liquid, water, gas, oil, line pipe3. For both indoor and outdoor the building construction4. Widely used in scaffolding construction which is much cheaper and convenient
Packing	Bundle, or with all kinds of colors PVC or as your requirements

Thickness	0.12mm-0.8mm
Width	660~1150mm
Length	1000-11800mm or as your requst
Zn Coating	30-275g/m2
Grade	DX51D+Z	CS A	SGCC	SGC340	S220GD+Z
	DX52D+Z	CS B	SGCD	SGC400	S250GD+Z
	DX53D+Z	CS C		SGC440	S280GD+Z
	DX54D+Z	FS A		SGC490	S320GD+Z
	DX56D+Z	FS B		SGC510	S350GD+Z
	DX57D+Z			SGC570	S550GD+Z
Surface Treatment	Chromed/ Oiled/ Passivation/ Dry
Spangle	Regular spangle, minimized spangle , big spangle, zero spangle
Hardness	Soft, Full hard, Half hard
Packing	Standard export package. Steel pallet about 3 tons.(Plastic film in the first layer, second layer is Kraft paper. Third layer is galvanized sheet+package strip+corner protected)
Application	Building industry ,structural use, roofing, commercial use ,household appliance, industry facilities, office buildings
Advantages	1.Design according to customers 'requirements
	2.Production under ISO9001-2008 Quality System
	3.Easy to be installed as light weight
	4.Our products are recyclable materials
	5.The less construction period, the more using time.
	6.paint your logo for free

Chemical Composition and Mechanical Properties

Steel grades	Chemical composition%						Residual Element>	Tensile strength(MPa)
	C%<	Si%<	Mn%<	P%<	S%<	Alt<
SGCC, DX51D+Z	0.07	0.03	0.50	0.025	0.025	0.020	Cu<0.10Ni<0.08Cr<0.10As<0.05Sn<0.05	270-500
DX52D+Z	0.06	0.03	0.45	0.025	0.025	0.020		270-420
DX53D+Z	0.03	0.03	0.40	0.020	0.020	0.020		270-380
S220GD+Z	0.17	0.30	1.00	0.035	0.30	0.020		300-440
S250GD+Z	0.17	0.30	1.00	0.035	0.30	0.020		330-470
S350GD+Z	0.20	0.55	1.60	0.035	0.30	0.020		420-560
